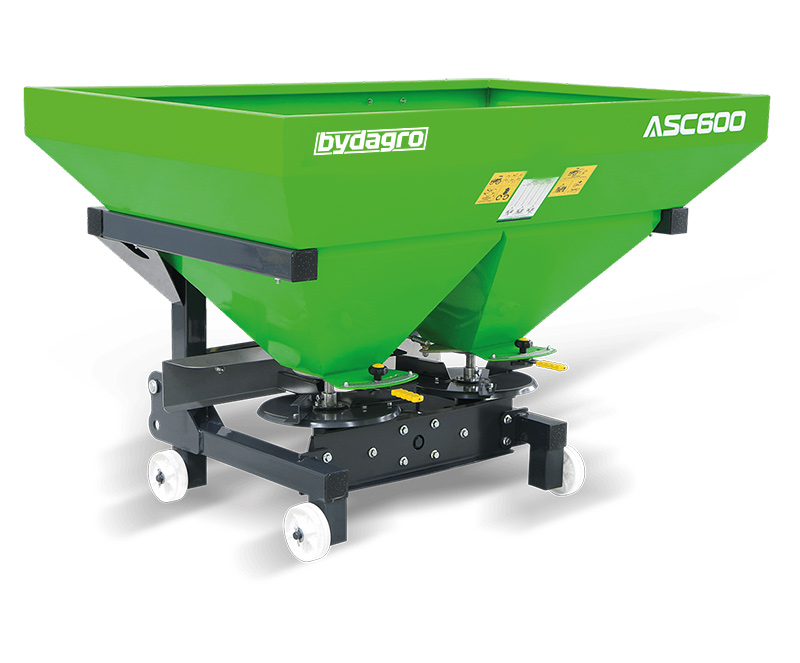

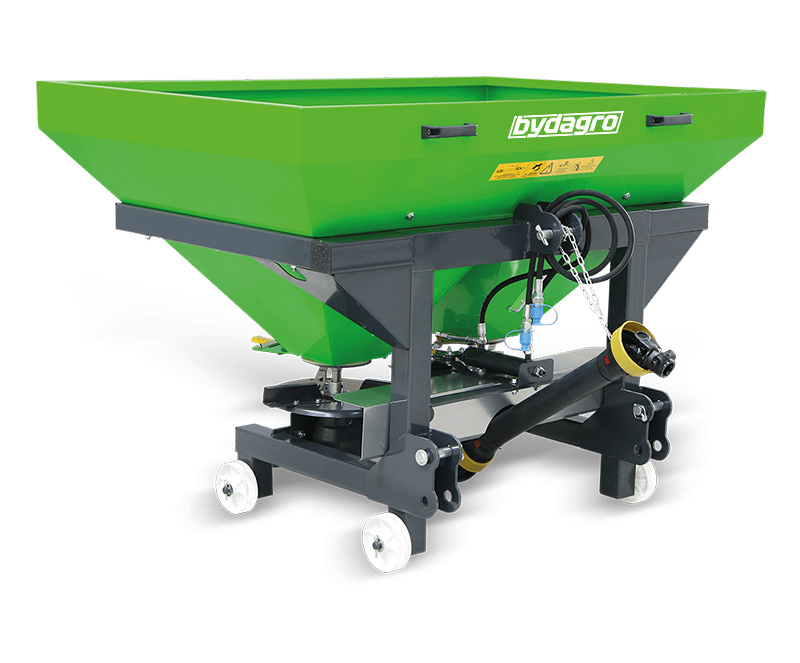

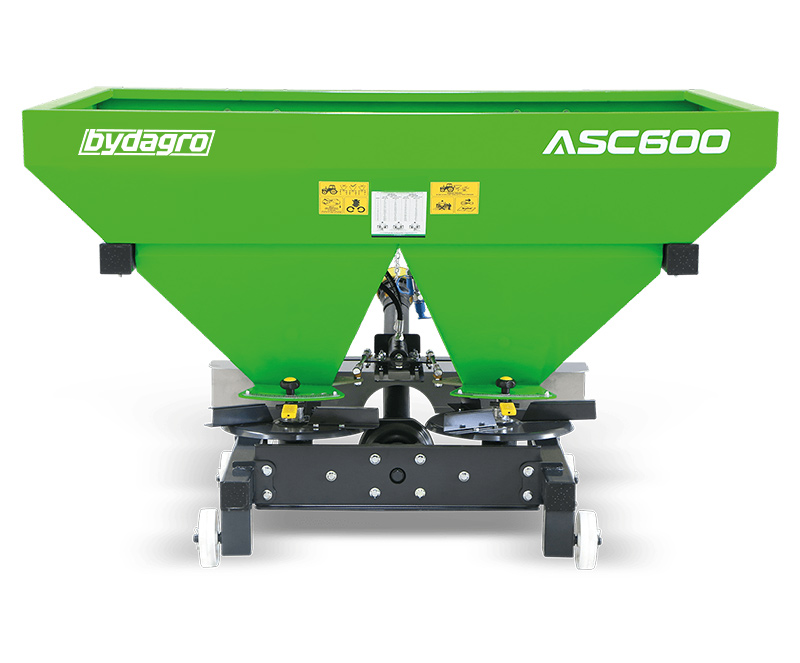

ASC Series Fertilizer Spreader

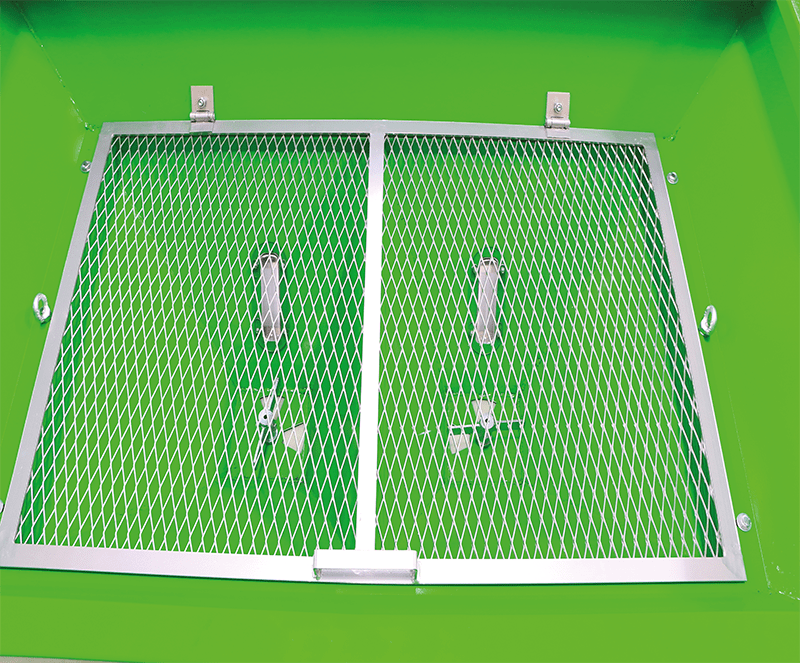

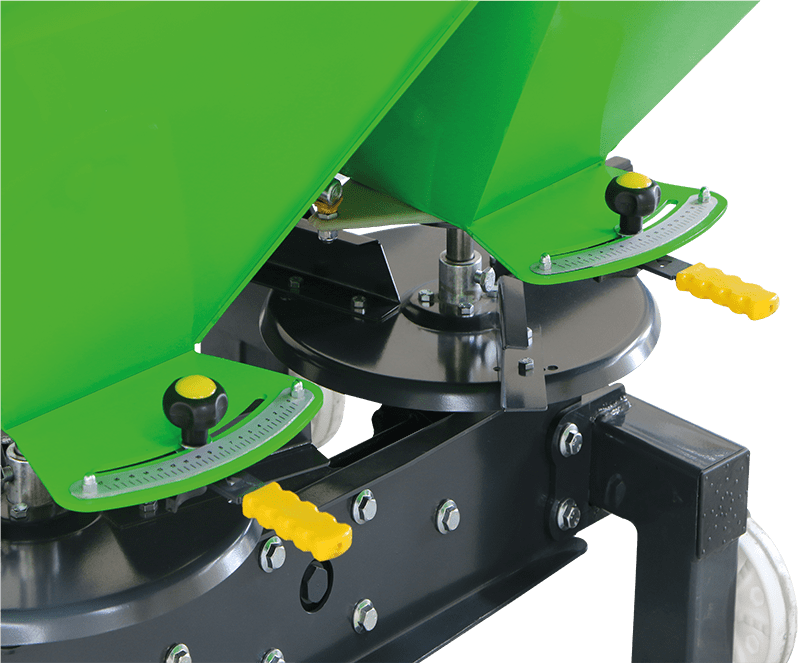

ASC Series fertilizer spreaders are produced in different capacities and provide easy use with its hydraulic control system. Fertilizer distribution and spread can be customized with angled wings and sliding adjustment arms. Thanks to vertical mixers, homogeneous fertilizer flow is provided. The surface of the machines is protected by the zinc phosphate system. Among the options, the tent protects the fertilizer from rain and the chrome disc prevents corrosion.
| TECHNICIAL SPECIFICATIONS | |||
| MODEL | ASC600 | ASC800 | ASC1000 |
| Mixer Type | Vertical | Vertical | Vertical |
| Distributor Disc Quantity | 2 | 2 | 2 |
| Number of Wings on Each Disc | 3 | 3 | 3 |
| Control Type | Hydraulic | Hydraulic | Hydraulic |
| Distance Between Gearbox (cm) | 50 | 50 | 50 |
| PTO Speed (RPM) | 540 | 540 | 540 |
| Working Speed (km/h) | 8-10-12 | 8-10-12 | 8-10-12 |
| Working Width (m) | 18-24 | 18-24 | 18-24 |
| Fertilizer Filling Capacity (lt) | 600 | 800 | 1000 |
| Width (A) (mm) | 1103 | 1153 | 1153 |
| Length (B) (mm) | 1603 | 1703 | 1703 |
| Height (C) (mm) | 1105 | 1185 | 1310 |
