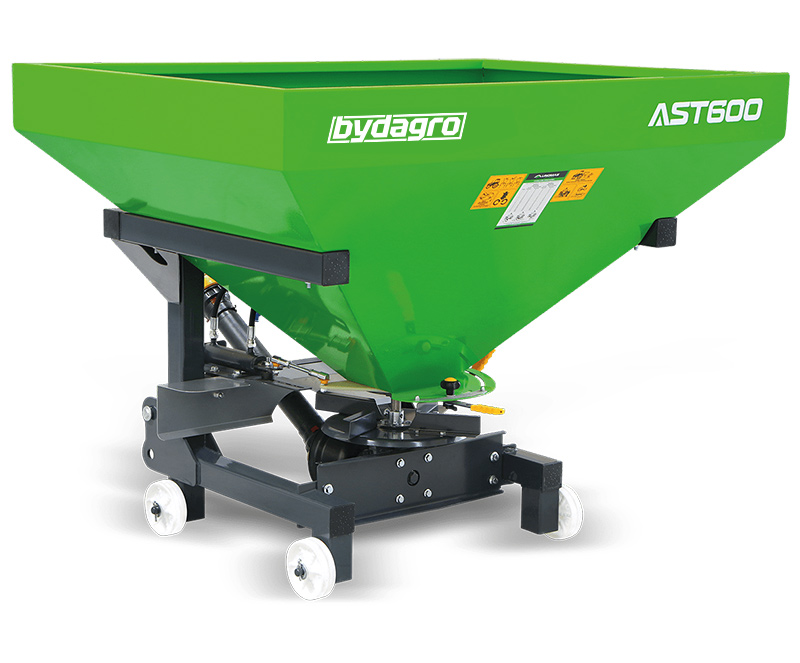

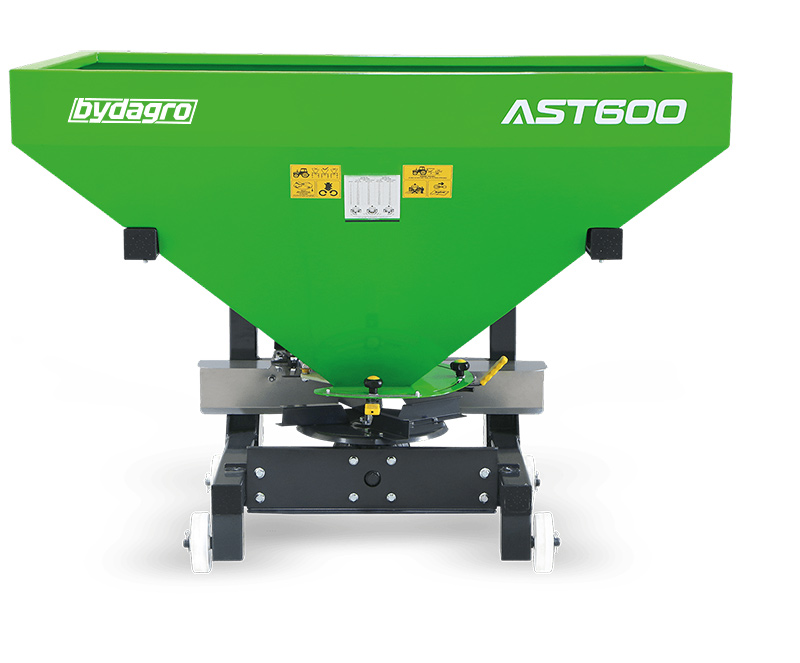

AST Series Fertilizer Spreader
Our Pendulum Type AST Series Fertilizer Spreaders offer a product range with 5 different capacity options (L). The hydraulic control system integrated in our product not only facilitates use, but also prevents unnecessary waste of fertilizer.
| TECHNICIAL SPECIFICATIONS | |||||
| MODEL | AST400 | AST500 | AST600 | AST800 | AST1000 |
| Mixer Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Distributor Disc Quantity | 1 | 1 | 1 | 1 | 1 |
| Number of Wings on Each Disc | 4 | 4 | 4 | 4 | 4 |
| Control Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| PTO Speed (RPM) | 540 | 540 | 540 | 540 | 540 |
| Working Speed (km/h) | 8-10-12 | 8-10-12 | 8-10-12 | 8-10-12 | 8-10-12 |
| Working Width (m) | 16-20 | 16-20 | 16-20 | 16-20 | 16-20 |
| Fertilizer Filling Capacity (lt) | 400 | 500 | 600 | 800 | 1000 |
| Width (A) (mm) | 1037 | 1070 | 1102 | 1152 | 1152 |
| Length (B) (mm) | 1303 | 1403 | 1503 | 1653 | 1653 |
| Height (C) (mm) | 1085 | 1130 | 1180 | 1250 | 1375 |
